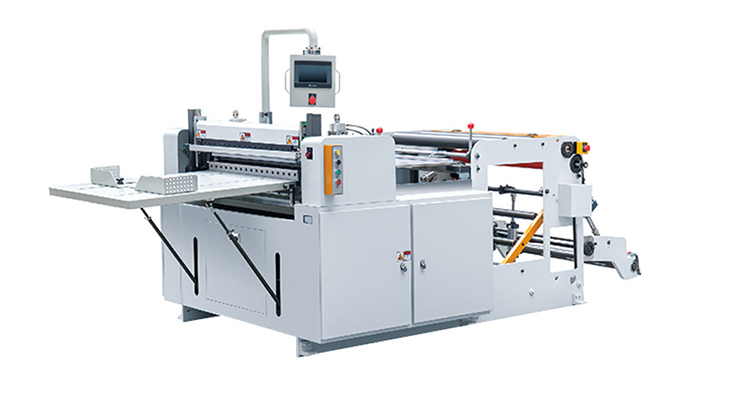

This machine is suitable for cutting all kinds of paper, self-adhesive paper, paper-plastic composite, color printing composite and other large roll packaging materials.

adopts servo motor to control fixed-length cutting.

The transmission system adopts centralized control such as pneumatic and photoelectric sensors.

Has the advantages of easy, convenient operation, High cutting precision, mechanical stability and low noise. (Pneumatic feeding can be selected) Motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder or friction sheet manual tension adjustment function.

FEATURES

1. Main machine frequency conversion speed regulation, PLC touch screen control system, automatic counting, automatic fixed length, alarm stop, automatic tension control and other functions;

2. The unwinding adopts a conjoined automatic feeding structure, and the unwinding reel adopts a 3-inch key strip type inflatable shaft;

3. The frame adopts 10-12mm steel plate and groove-shaped rigid structure, the cross-cutting knife seat adopts cast recombined structure, and the guide adopts statically balanced alloy aluminum guide;

4. The driving positioning servo drive shaft is polyurethane rubber, and the feeding mode motor drives the sprocket transmission.

5. This machine is an ideal large-scale coil cutting equipment with high precision, fast speed and stable material receiving.
