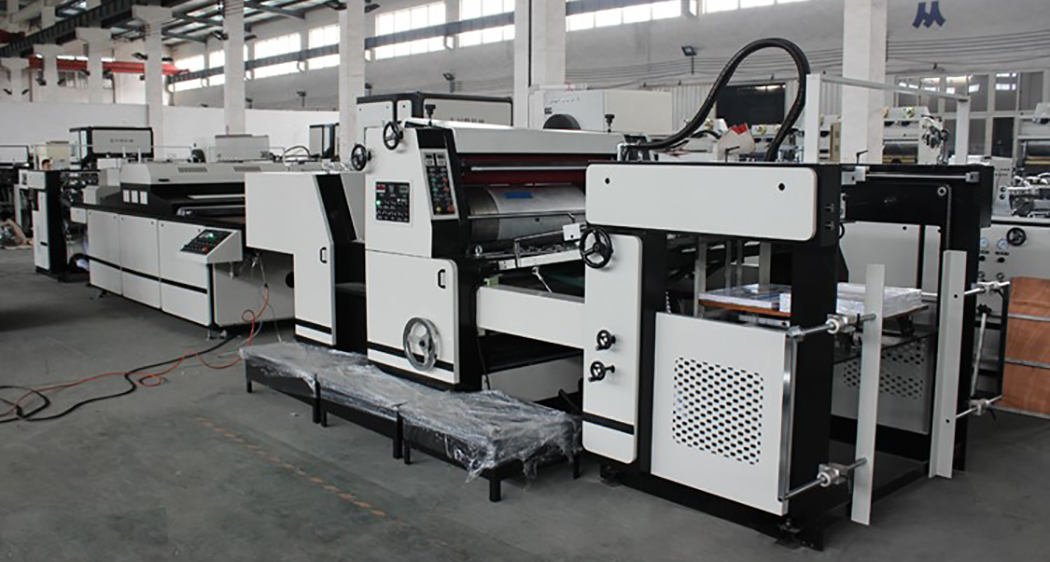

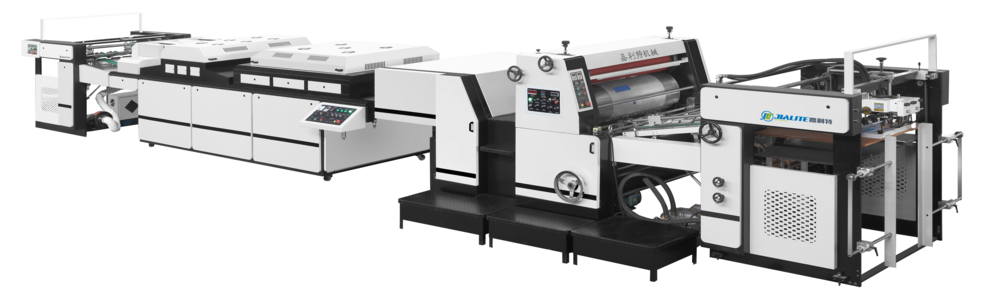

SGZJ-1200 Automatic Spot UV Varnishing Machine

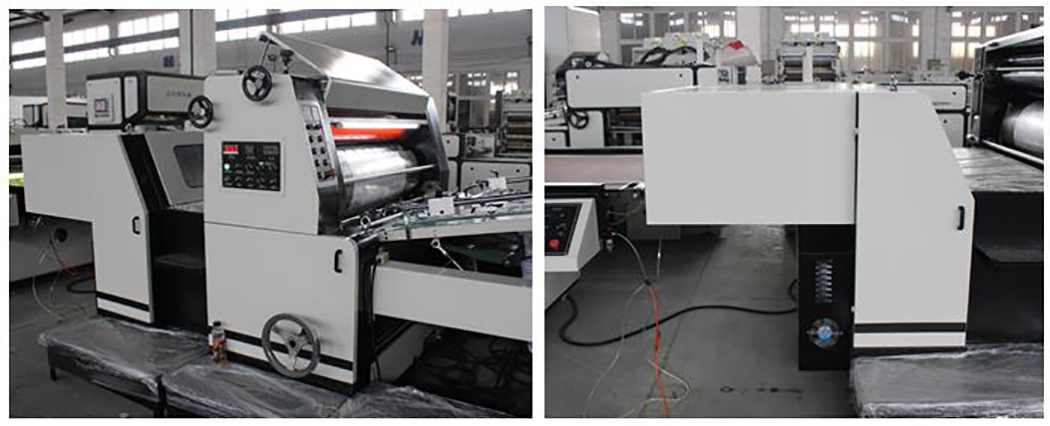

Front

Back

Usage:

SGZJ-1200 Automatic Spot UV Varnishing Machine as a professional equipment used for oil/UV oil coating laminating on the local and overall surface of paper printed matter. After oil coating machine processing, the printed matter will greatly improve surface gloss, Wear-resisting and waterproof effects. Machine with reasonable structure and easy control, it is suitable various thin and thick paper (80-600g/m²). Widely used in books, magazines, calendars, cards, brochures, packaging boxes, window display drawing surface decoration painting. It is a necessary equipment for the printing factory, packaging factory and decorative painting factory.

Characteristics:

Flexo Printing technology is used on this machine, based on Rubber Blankets or Polymer Plates for overall or spot coating. UV Varnishing and Water-Based Varnishing are available. The varnish is applied onto the blanket before being transferred to the sheets, three sets of gripper-bar (workable sheet weight 80~600gsm) and suction conveyor belt technology system provide a trouble free production flow.
Main Technical Parameters:

Function introduction of each part:

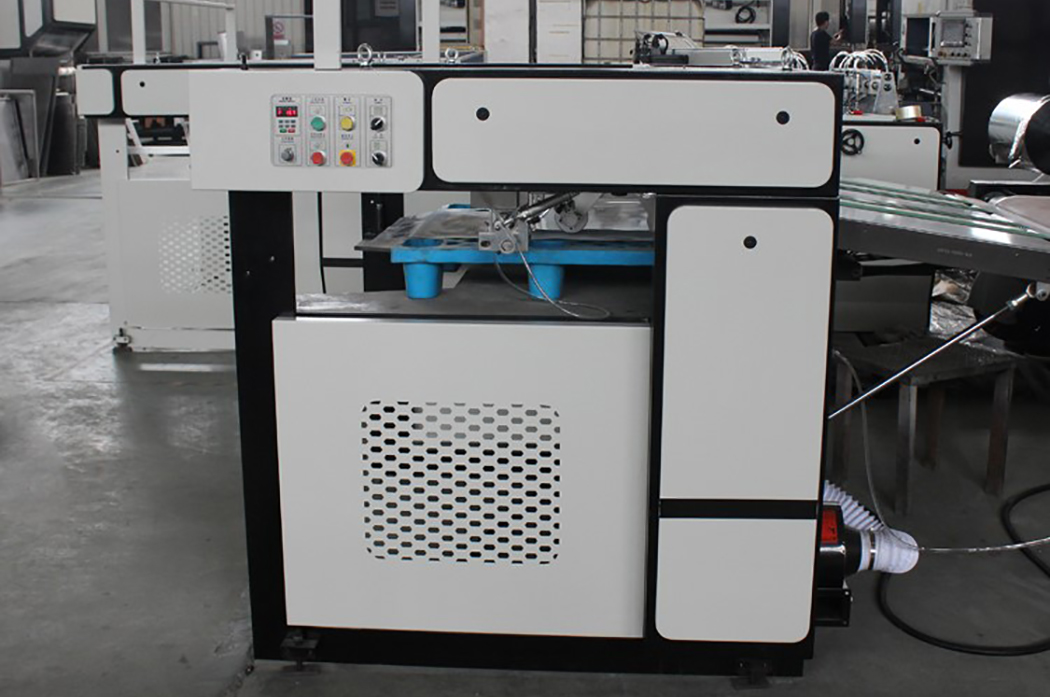

1.Automatic paper collector

The automatic paper collector pats paper right and left to ensure paper collection in order without shutdown.

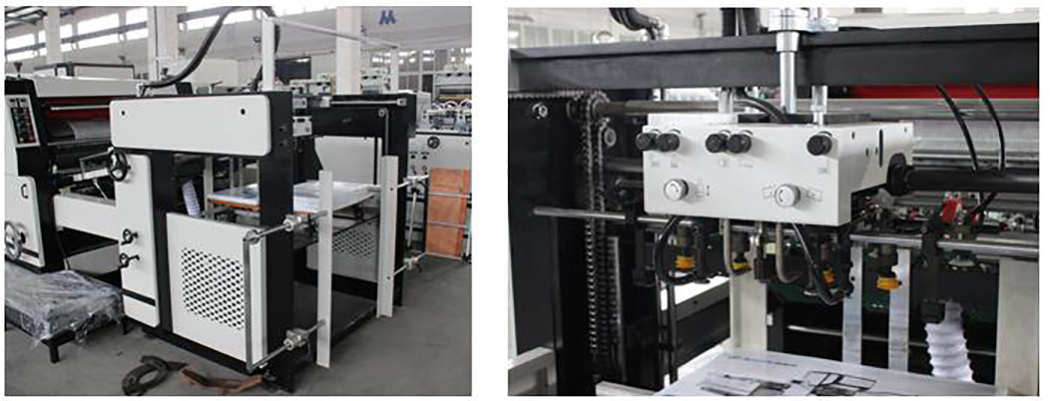

Automatic Feeder

Paper feeding and plate micro-adjustment by front and side guide

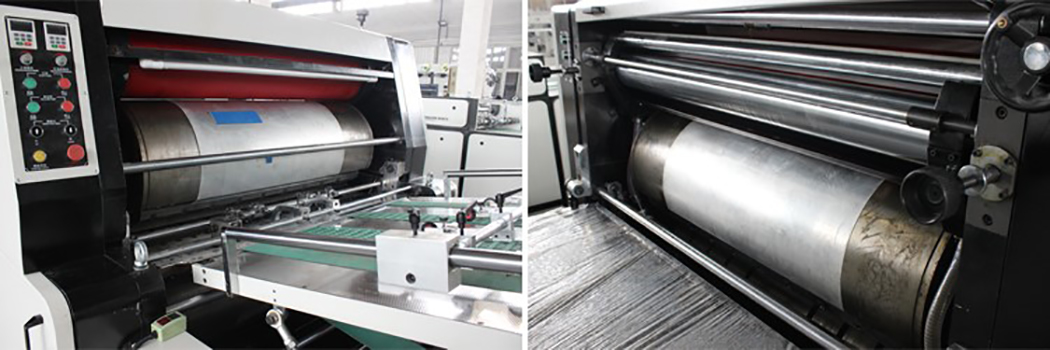

2. Coater

As adopting flexible UV for local/total UV polishing or local/total aqueous polishing, it has the characteristics of multipurpose by one machine. It adopts a gripper bite-type paper conveying so that the positive surface feeds paper; the gripper bars receive and put paper to ensure the paper is more stable and reliable in the feeding process. The glue spreader and the steel metering roller adopt co-rotation; stepless regulation of the steel metering roller can achieve the aim of regulating the oil amount in coating.

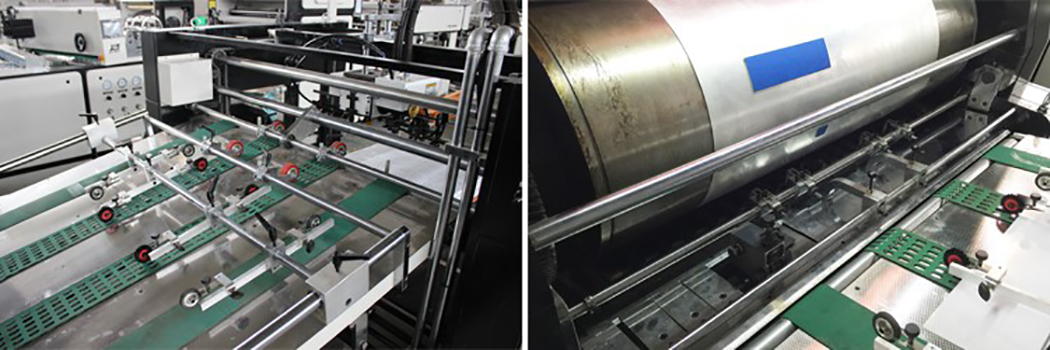

Coater and paper output via gripper-bar

UV printing base on Blanket or photopolymer plate is valid

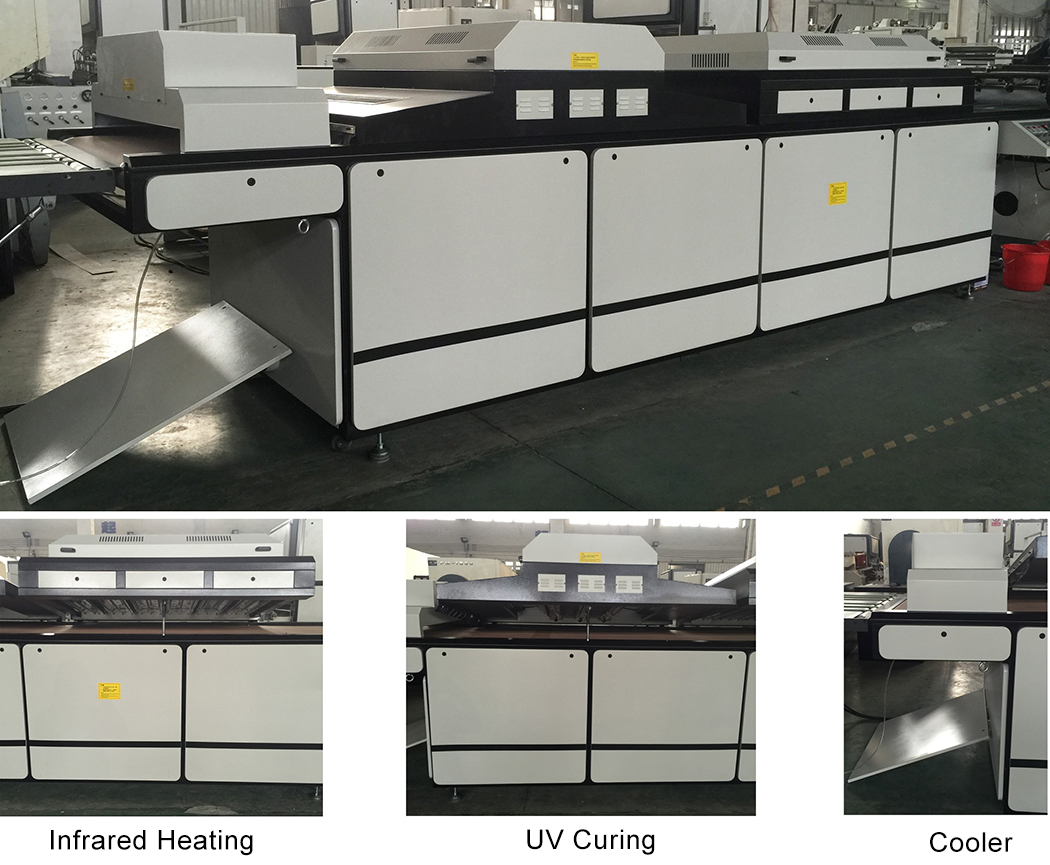

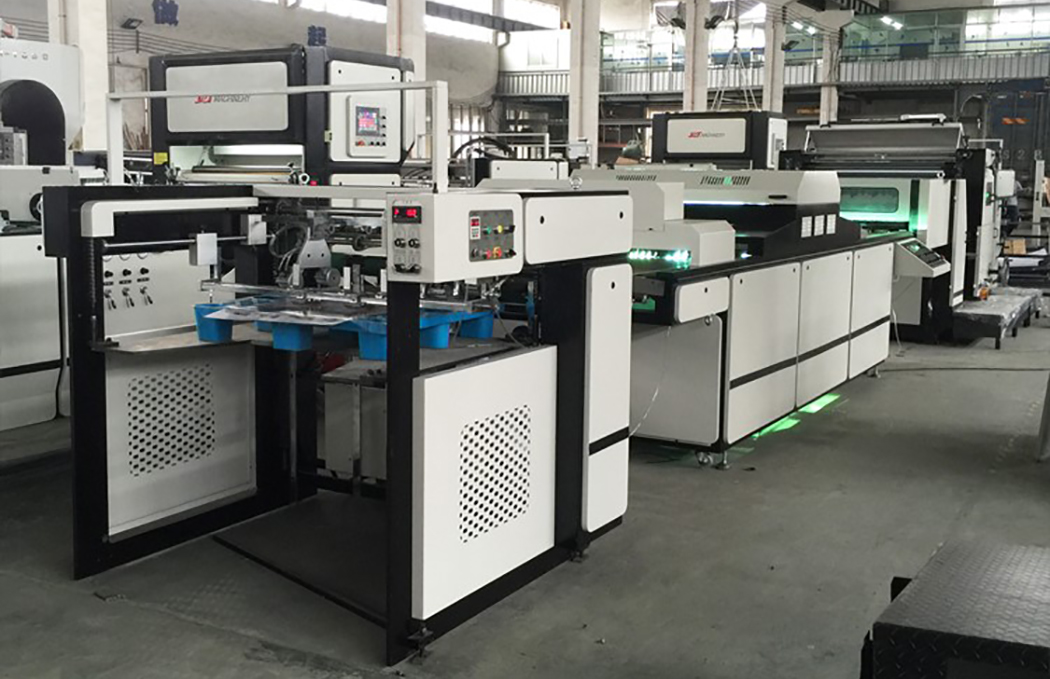

3.Drying part

The infrared drying tunnel adopts 18 infrared tubes with 1.2Kw per piece.

The ultraviolet drying tunnel adopts 3 ultraviolet tubes with 8Kw per piece. The inside of the drying oven adopts a UV automatic deviation-correcting device in high precision. The automatic temperature controller of infrared lamps has stable temperature. The more reasonable drying and cooling system with fan for assistance ensures the aqueous varnishing and UV (ultraviolent) drying effects; the infrared lamp and UV (ultraviolent) drying oven has an automatic rising-lowering protector.

Common standard: IR DRY, UV DRY, AIR DRY

4.Automatic paper collector

The automatic paper collector pats paper right and left to ensure paper collection in order without shutdown.

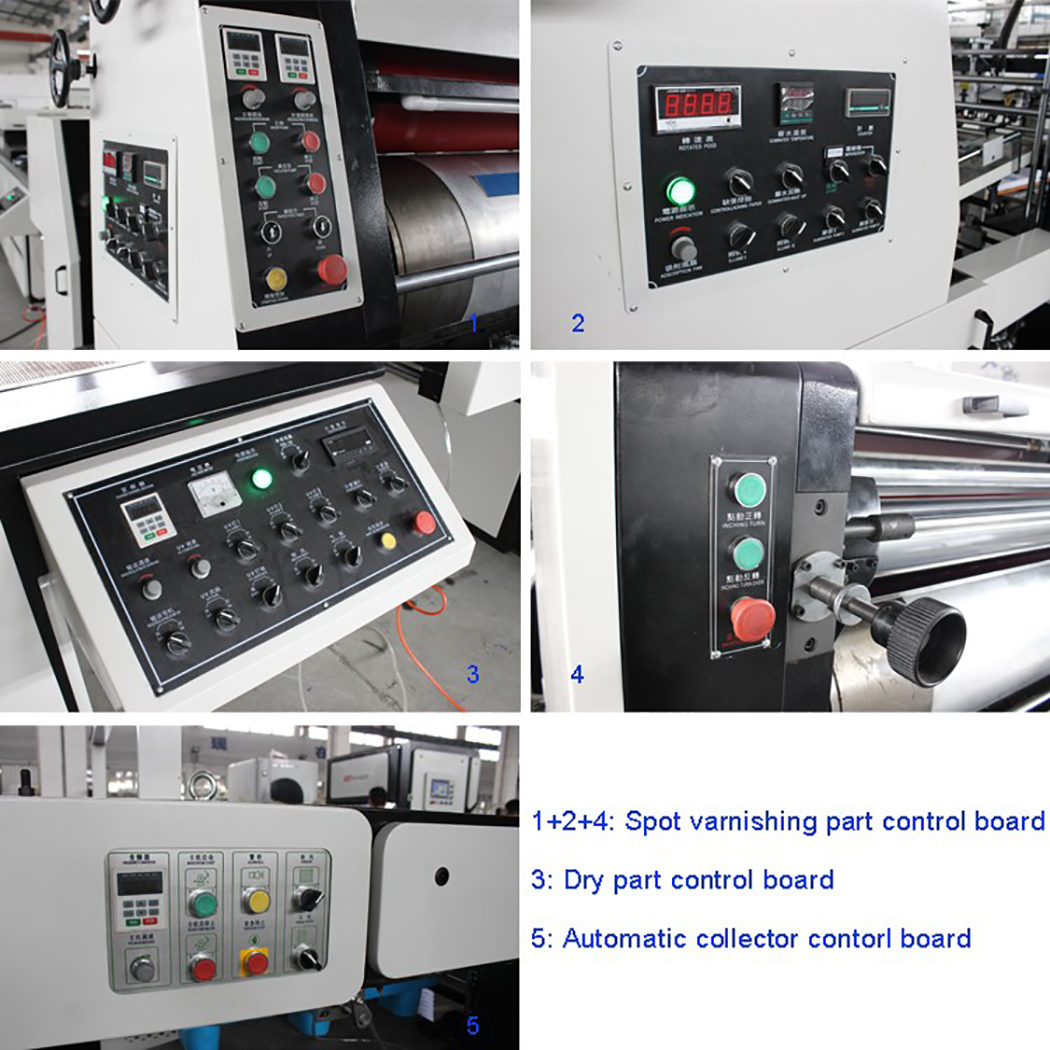

5. Electric control boards:

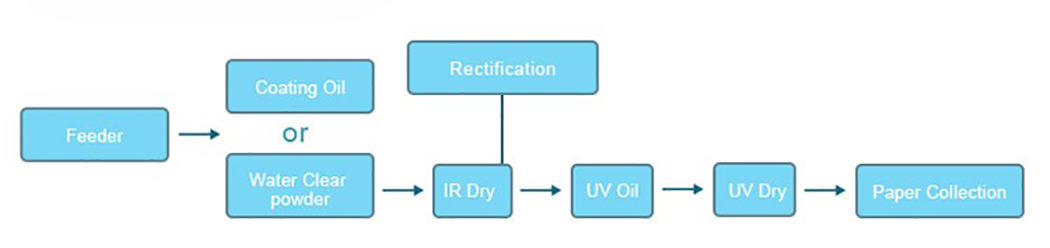

Processing:

Detailed list of main parts

The above configuration is subject to change without prior notice

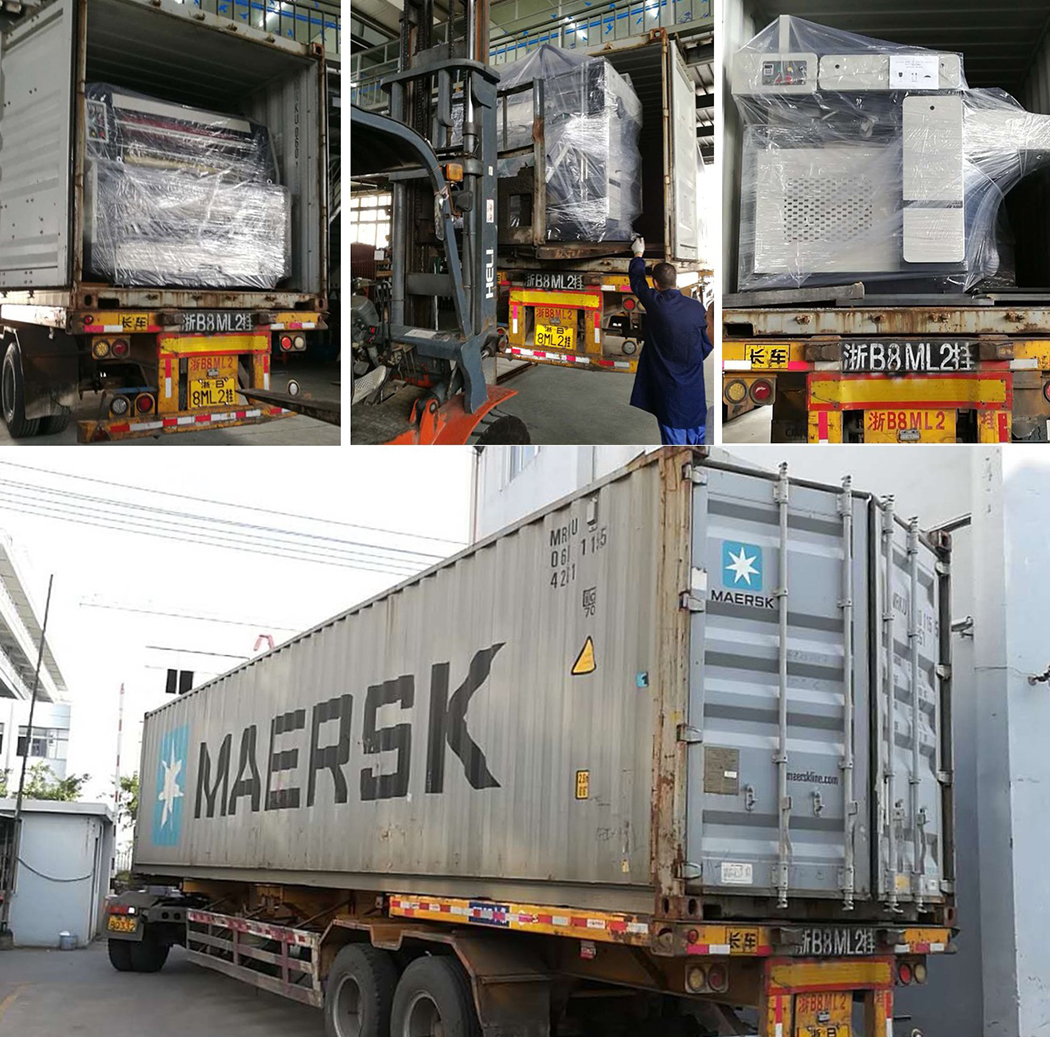

Package and loading:

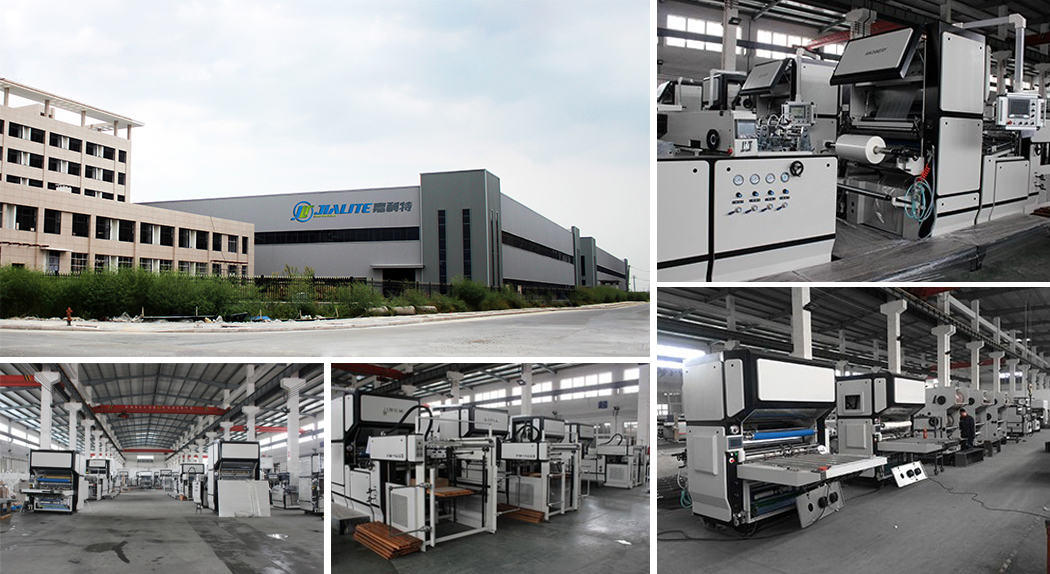

Enterprise Brief:

Warranty:

Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine’s quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty. Wages: 80.00USD per day.
